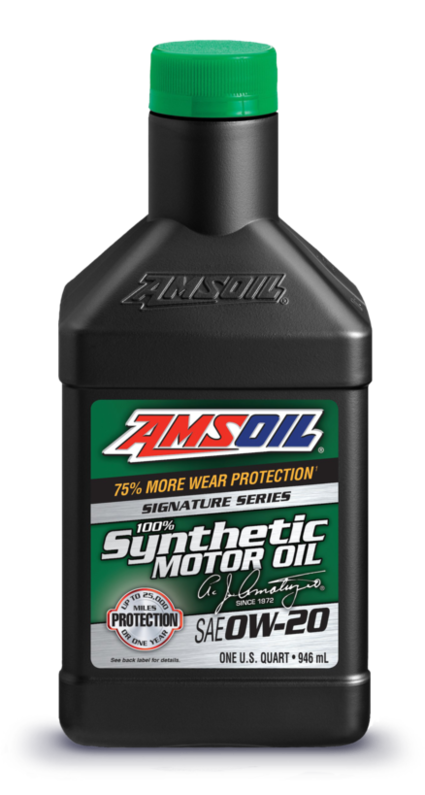

Signature Series Synthetic Motor Oil develops a strong fluid film that keeps metal surfaces separated while its robust anti-wear additives further reduce wear in metal-to-metal contact regions for maximum engine life. The Sequence IVA Engine Test, which must be passed to meet the API SN PLUS specification, simulates extended periods of stop-and-go driving. For 100 hours, the test engine cycles between 50 minutes of idling and 10 minutes of elevated rpm – conditions that encourage engine wear. The camshaft is then measured for wear in 84 locations and an average score is determined. We used Signature Series 0W-20, the lightest viscosity in the line, to further increase the severity of the test. AMSOIL Signature Series Synthetic Motor Oil provided 75 percent more engine protection against horsepower loss and wear¹ than required by the industry standard, extending the life of vital components like pistons and cams.
After rigorous third-party testing,the cam lobes show little-to-no wear.
SEQUENCE IVA ENGINE TESTLower number = less wear¹ Based on independent testing of AMSOIL Signature Series 0W-20, in ASTM D6891 as required by the API SN PLUS specification. -
We armed Signature Series with an advanced detergent system that protects against harmful deposits and low-speed pre-ignition (LSPI). Most new engines feature gasoline direct injection (GDI), often combined with a turbocharger to boost power and improve fuel economy. These new technologies, when combined with a poorly formulated motor oil, promote LSPI and threaten engine operation. LSPI is the spontaneous ignition of the fuel/air mixture prior to spark-triggered ignition. It occurs in today’s advanced engines and is much more destructive than typical pre-ignition. A properly formulated motor oil is critical for protecting your engine. Original equipment manufacturers (OEMs) like GM* have addressed the issue by designing tests to determine a motor oil’s ability to prevent LSPI. Signature Series Synthetic Motor Oil achieved 100 percent protection against LSPI2 in the engine test required by the GM dexos1* Gen 2 specification – zero occurrences were recorded throughout five consecutive tests.
Example of piston damage due to an LSPI event observed during the testing of a competitor’s motor oil. The red arrows indicate sections of the ring land that broke away from the piston.* All trademarked names and images are the property of their respective owners and may be registered marks in some countries. No affiliation or endorsement claim, express or implied, is made by their use. All products advertised here are developed by AMSOIL for use in the applications shown.2 Based on independent testing of AMSOIL Signature Series 5W-30 motor oil, in the LSPI engine test as required for the GM dexos1 Gen 2 specification. -
Our unique synthetic formulation is inherently stable to resist oxidation and neutralize acids. Signature Series Motor Oil provides outstanding protection against deposits common to high-temperature engine environments. The tremendous heat and stress turbos create can cause some oils to break down and form harmful bearing deposits through a process known as turbo coking. Over time, turbos can suffer reduced performance or fail altogether. We challenged Signature Series to the GM Turbo Coking Test, which consists of 2,000 cycles of extreme heat soaks. An oil must limit the temperature change within the turbocharger to 13 percent or less to pass the test. Signature Series limited the temperature increase to only 3.6 percent, protecting the turbocharger 72 percent better than required3 by the GM dexos1 Gen 2 specification.
Signature Series controlled heat and minimized performancerobbing deposits on the turbobearing and shaft surfaces.3 Based on independent testing of AMSOIL Signature Series 5W-30 in the GM turbo coking test. -
AMSOIL Signature Series Synthetic Motor Oil has 50 percent more detergents4 to help keep oil passages clean and promote oil circulation. Engine failures due to sludge are often caused by a plugged oil pick-up tube screen – the motor is effectively starved of oil. The Sequence VG Engine Test measures an oil’s ability to prevent sludge. During the test, a Ford* 4.6L engine is subjected to sludge-inducing conditions for 216 hours. The industry standard allows for 10 percent blockage before the motor oil fails the test. Signature Series produced a screen virtually free from sludge (see image). Its detergent and dispersant additives are so effective, Signature Series provides 90 percent better protection against sludge.54 vs. AMSOIL OE Motor Oil5 Based on independent testing of AMSOIL Signature Series 5W-30 in the ASTM D6593 engine test for oil screen plugging as required by the API SN PLUS specification. -
Dedicated engine builders and mechanics put in long hours honing their craft. These architects of powerful, highperformance engines turn to Signature Series to protect their passion. “When we use AMSOIL, I don’t worry about a film breakdown or an oil breakdown – and the oil pressure is always consistent. We’ve tested oils back-to-back on the dyno in our shop and we’re always able to make more power with AMSOIL.” Brett Bowers, Professional Engine Builder.
SERVICE LIFE
Normal Service Up to 25,000 miles (40,200 km), 700 hours of operation or one year, whichever comes first, in personal vehicles not operating under severe service.
Severe Service Up to 15,000 miles (24,140 km), 700 hours of operation or one year, whichever comes first. Severe service conditions include commercial or fleet vehicles; excessive idling; or frequent towing, hauling, plowing or driving in dusty conditions.
- Modified engines (non-stock), racing vehicles and vehicles using alternative fuels (E85, CNG, propane, etc.) are excluded from extended drain interval recommendations.
- Change at the vehicle manufacturer's recommended drain interval outside U.S. and Canada.
- AMSOIL Oil Filters are designed for extended drain intervals. Do not exceed 12,000 miles (19,312 km) or one year with other brand filters unless longer intervals are recommended by the vehicle manufacturer. Always change filter when changing oil.
- Check oil regularly to maintain proper fill levels
AMSOIL Oil Filters stop smaller particles, flow more oil and last longer than regular filters. For best performance, use AMSOIL Oil Filters.
APPLICATIONS
Use AMSOIL Signature Series Synthetic Motor Oil in applications that require any of the following specifications: 0W-20 (ASM): API SP (Resource Conserving), SN PLUS, SN GM dexos1 Gen 2 (supersedes 6094M); ACEA A1/B1; Ford WSS-M2C947-B1, WSS-M2C947-A; Chrysler MS-6395; ILSAC GF-6A, GF-5, GF-4
COMPATIBILITY
AMSOIL Signature Series Synthetic Motor Oil is compatible with other conventional and synthetic motor oils. Mixing other oils with AMSOIL motor oils, however, will shorten the oil's life expectancy and reduce its performance benefits. AMSOIL does not support extended drain intervals where oils have been mixed.Aftermarket oil additives are not recommended for use with AMSOIL synthetic motor oils.
-
AMSOIL Signature Series Synthetic Motor Oil provides reserve protection, allowing you to go longer between oil changes if you choose – up to 25,000 miles (40,200 km), 700 hours of operation or one year, whichever comes first (see back page for details). Our unique synthetic formulation and long-drain additive system are inherently stable to resist oxidation and neutralize acids over longer periods. Signature Series is designed to deliver outstanding engine protection, cleanliness and performance over extended drain intervals – guaranteed. It provides peace of mind so you can fit oil changes into your schedule. -
The extreme durability of Signature Series Motor Oil helps your engine run stronger, for longer. We installed Signature Series 5W-30 Synthetic Motor Oil in a Ford* F-150* with a new 3.5L Ecoboost* engine to test its ability to protect turbocharged direct-injection (TDGI) engines from torque and horsepower loss during extended drain intervals up to 25,000 miles (40,200 km). Power sweeps were done at the beginning and end of the test to evaluate horsepower and torque retention. As the graph shows, Signature Series helped maintain engine performance throughout the 100,000-mile (160,934 km) test.
*All trademarked names and images are the property of their respective owners and may be registered marks in some countries.No affiliation or endorsement claim, express or implied, is made by their use. All products advertised here are developed by AMSOIL for use in the applications shown. -
Signature Series has a uniform molecular structure that limits evaporation and keeps it where it’s needed most – protecting your engine. Volatility (burn-off) occurs when oil gets hot, causing lighter molecules to burn off or evaporate. This leads to oil thickening, additive imbalance, higher emissions and oil consumption. The NOACK Volatility test is the industry standard for evaluating motor oil hightemperature evaporation. It measures the percentage of burn-off after a motor oil is placed under constant airflow at 482ºF (250ºC) for 1 hour. A lower number indicates a better resistance to evaporation. Signature Series falls far below the API limit for volatility, reducing the need for frequent oil top-offs and limiting vehicle emissions.
-
Signature Series Synthetic Motor Oil does not contain paraffins (wax) and stays fluid in temperatures of -58ºF (-50ºC) and lower. Extreme cold causes other motor oils to thicken, starving vital moving parts of lubrication, accelerating wear and even preventing vehicles from starting. Signature Series provides 66 percent better cold-temperature performance for easier starting, better fuel economy, improved oil flow (as seen below) and reduced wear.
-
We formulated Signature Series with superior thermal durability that resists breakdown and keeps pistons clean. The Sequence IIIH Test uses the Chrysler* 3.6L Pentastar* engine to evaluate a motor oil’s ability to resist heat and keep pistons clean. The test is conducted with oil temperatures of 304ºF (151ºC), much hotter than normal operation, to accelerate oil thickening and deposits. A single-length 90- hour test didn’t even challenge Signature Series. Its viscosity was like that of new oil, and the pistons were still nearly spotless. To really test the oil, we told the lab to reassemble the engine and run the test again using the same oil. Even after doubling the length of the industry-standard test, the oil limited oil thickening to well under the allowable threshold while delivering 40 percent cleaner pistons than required by the standard.6
Even after doubling the length of the standard test, Signature Series maintainedviscosity and minimized performancerobbing piston deposits for a clean, long-lasting engine.6 Based on independent testing of AMSOIL Signature Series 5W-30 in the Sequence IIIH Engine Test (ASTM D8111), required by the ILSAC GF-6 and API SP specifications
